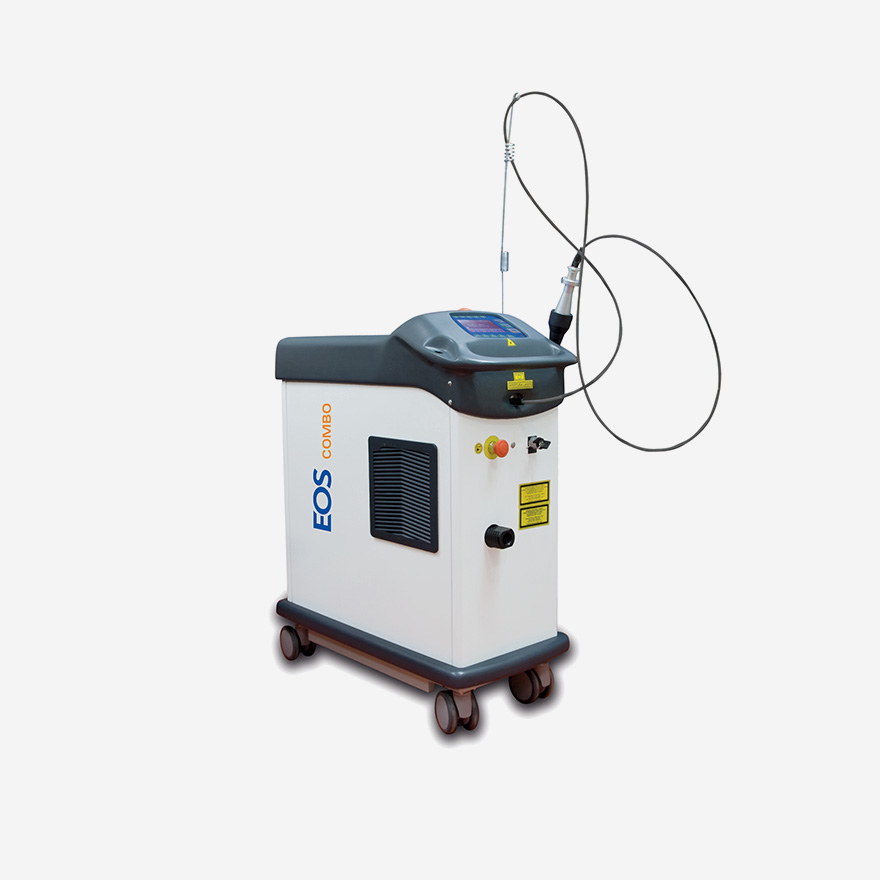

EOS COMBO

The Eos Combo, the result of a collaboration between El.En. and the Consiglio Nazionale delle Ricerche (CNR), combines two temporal regimes in one system.
By pressing a key you can move from the Short Free Running (SFR) mode, with a pulse duration ranging from 30 to 110 microseconds, to the Long Q-Switch (LQS) regime with 100ns pulses. This versatility allows the treatment of a wide variety of materials, such as stones, metals, wall paintings, wood, ceramics. The system was tested under the most difficult field
conditions and, thanks to its sealed laser head, demonstrates high reliability. The Eos Combo,
employing new optical fibers, combines manageability and performance, guaranteeing the conservator the optimization of costs and results.

MAIN FEATURES

The most versatile system on the market

Two pulse duration regimes for the successful application on every kind of material

Easy-to-handle and performing optic fibers

EOS COMBO - TECHNICAL DATA

Wavelength1064 nm
Pulse durationSFR mode: 30 - 110 μs; LQS mode: 100 ns
Max energy per pulseSFR mode : 2 J ; LQS mode: 150 mJ
Repetition rateSelectable between single pulse 1÷10Hz, 15Hz, 20Hz, 30 Hz
Spot 2.5 - 6 mm
Beam delivery1200 μm optical fiber, 3 m long
HandpieceVariable focus
Beam profilehomogeneous
Aiming beamlaser diode 3 mW (635 nm)
Power supply230V – 50/60 Hz – 12A
Dimensions33x95x75 cm
Weight80 Kg
Laser shutterControlled by footswitch
Cooling circuitWater/air
