SMART LASER

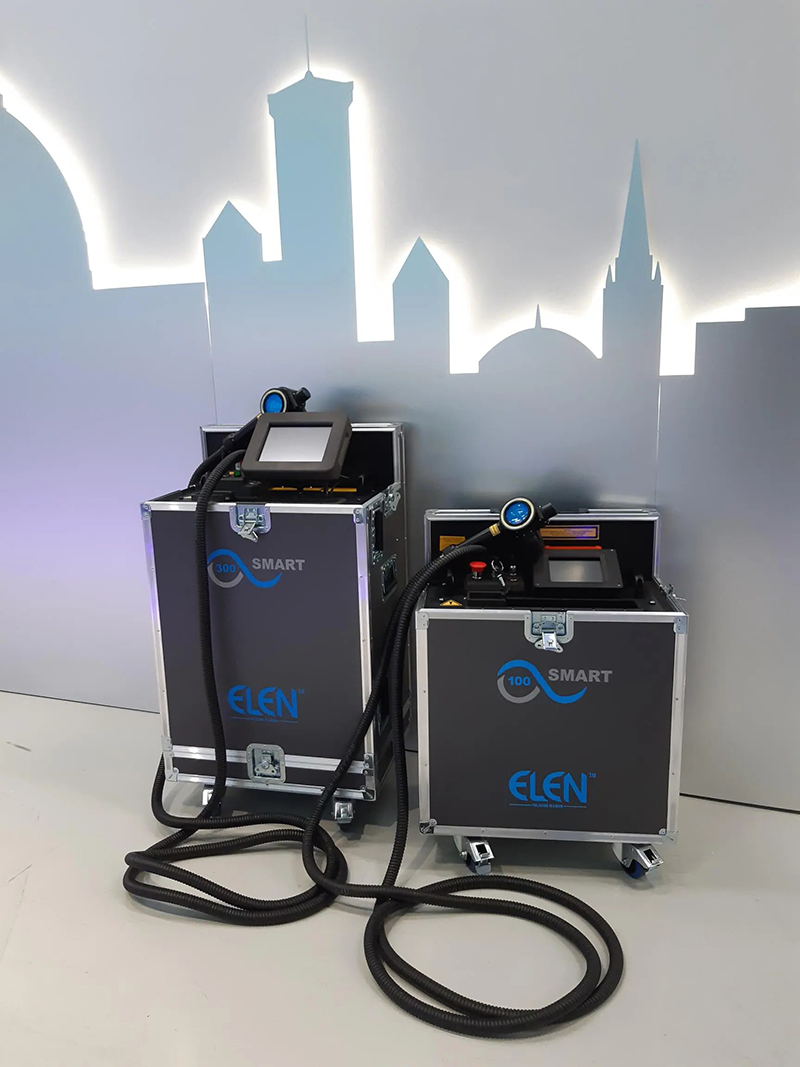

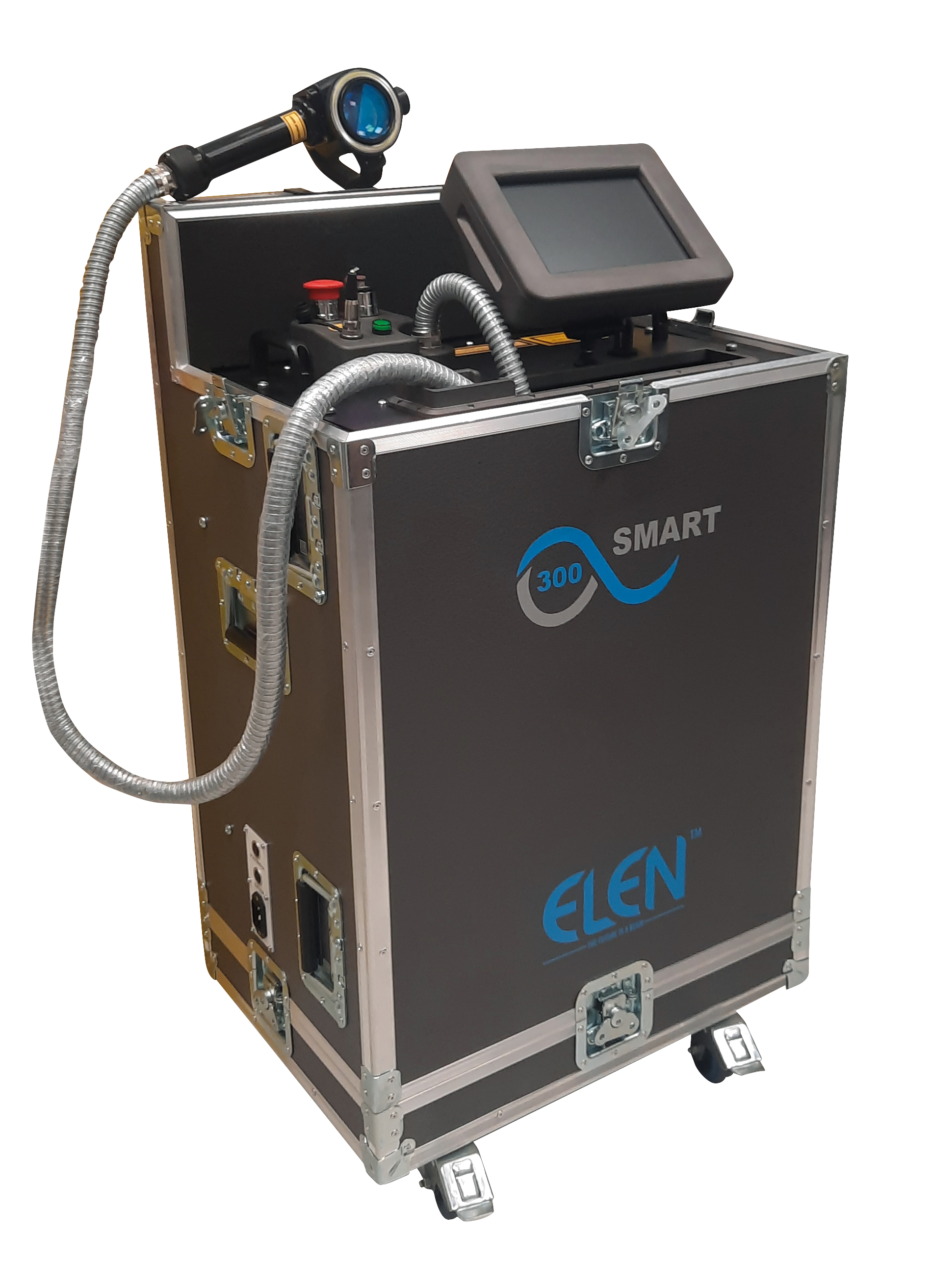

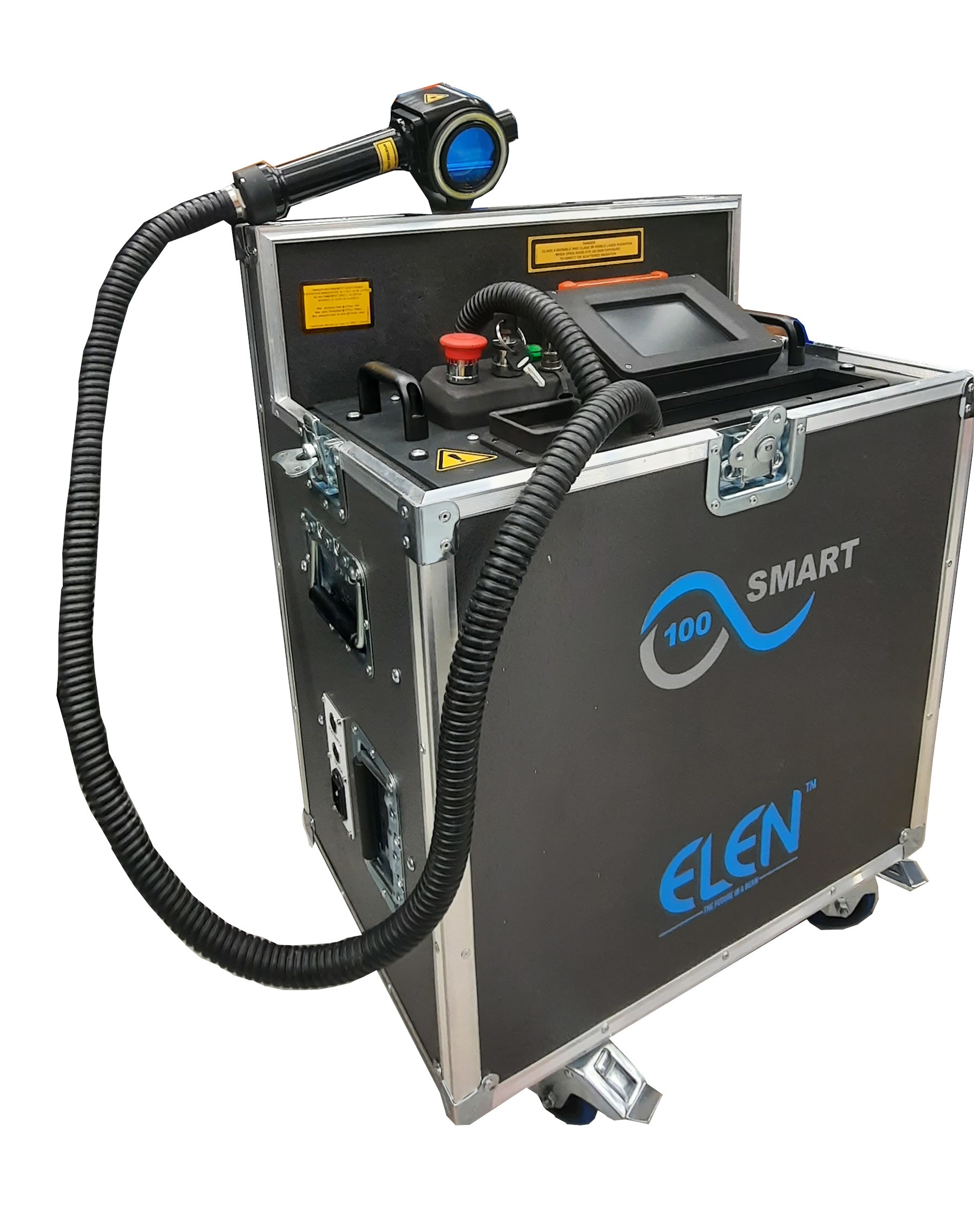

The SMART series is now available in two different powers: 100W and 300W.
These systems are equipped with a lightweight and ergonomic handpiece specially designed for this application. The systems are housed in a robust case for safe transport. Thanks to a convenient touchscreen for adjusting the various emission parameters, SMART 100 and 300 can quickly treat layers of different thicknesses and types.
The pulse duration can be veried and, depending on the model, maximum powers of 100W or 300W can be achieved. The scan has variable sizes and shapes to suit different applications: the maximum scan size is 100 mm for SMART 100 and 170 mm for SMART 300.
The SMART range is particularly suitable for cleaning large architectural surfaces, facades, large stone or metal statues and for removing graffiti quickly and efficiently.

MAIN FEATURES

Ytterbium-doped active fibre laser

Power 100W – 300W

Precise cleaning of even delicate surfaces

Variable scan shape with width up to 17 cm

Air-cooled system

TECHNICAL DATA
Model100W300W
Wavelength1064 nm
Pulse duration2-500 ns
Max power100W300W
Selectable powers0-100% (step 1%)0-100% (step 1%)
Repetition frequency20-4000 KHz
Max scan size100 x 100 mm170 x 170 mm
Scan shapesLine,
lissajous, circle,
brush, cross-brush
Aiming beam1mW; 660 nm
Beam delivery5m long optical fiber
ShutterControlled by a fingerswitch
Power supply100-230 V; 50-60Hz max 500W100-230V; 50-60 Hz
max 1500W
Coolingair
Size and weigth57 x 42 x 78 cm
58 Kg
(handpiece 1.2Kg)
57 x 48 x 99 cm
82 Kg
(handpiece 1.2Kg)
