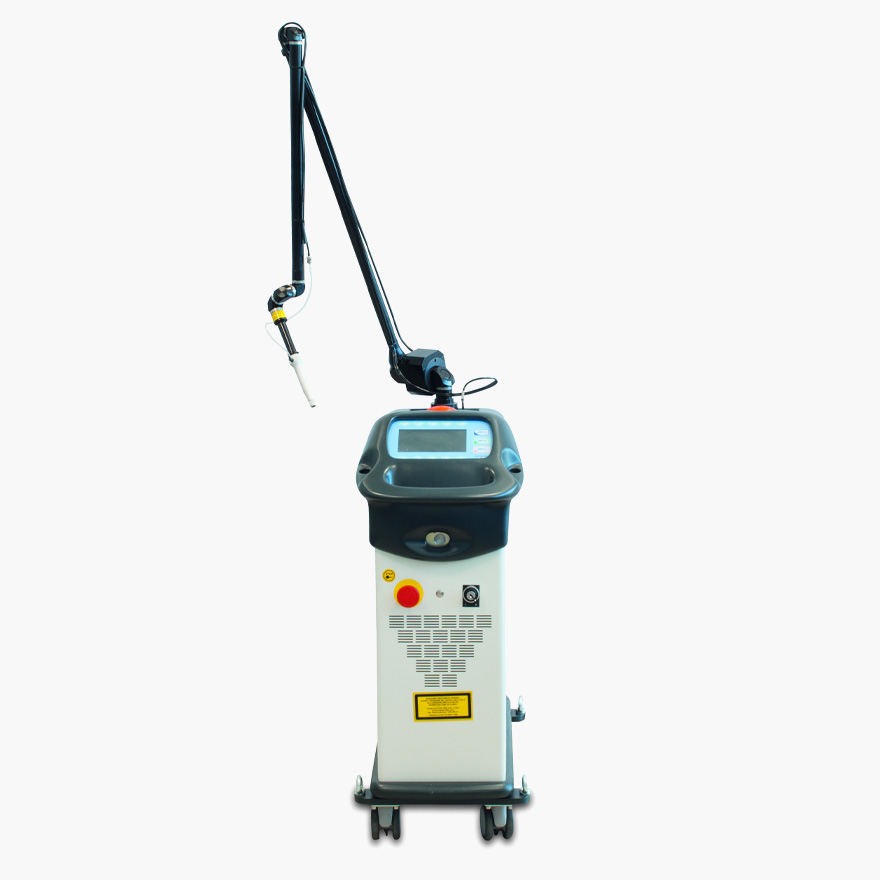

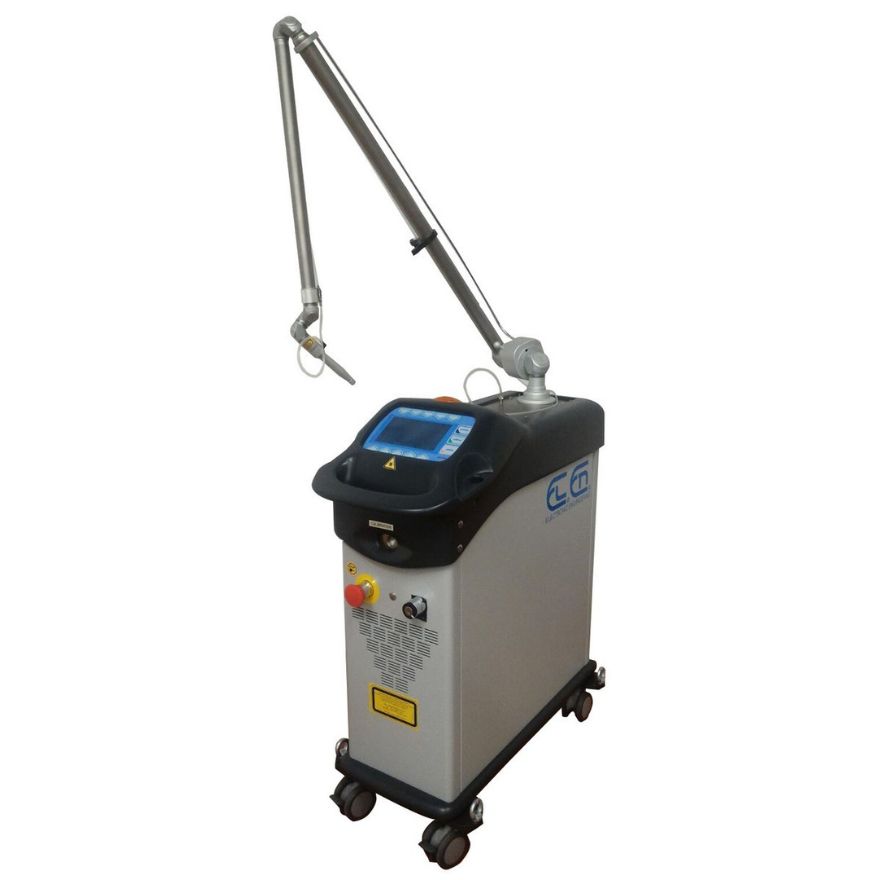

LIGHT BRUSH 2

Light Brush 2 is an Er:YAG laser system optimized for the cleaning of artworks. Er:YAG laser cleaning is based on the strong absorption of the 2940 nm wavelength from superficial layers containing OH bonds.
Many studies have shown indeed that Er:YAG laser exposure of a surface dampened with a liquid containing – OH groups effectively removes old varnish and other encrustations without inducing unwanted chemical or physical changes on the original surface. For this reason, Light Brush 2 is particularly suitable for the removal of overpaintings and varnishes from wall and easel paintings. Light Brush 2 is an innovative tool for restorers thanks to variable energy emission from 50 mJ to 500 mJ and to adjustable pulse duration.

MAIN FEATURES

Compact Er:YAG laser system optimised for the cleaning of Cultural Heritage

Beam delivery through articulated arm

LIGHT BRUSH 2 - TECHNICAL DATA

Wavelength2940 nm
Pulse durationVERY SHORT mode 150 µs, SHORT mode 250 µs, LONG mode 400 µs
Maximum energy500 mJ
EnergyVERY SHORT mode: selectable from 50 mJ to 300 mJ (step 50mJ),
SHORT mode: selectable from 100 mJ to 500 mJ (step 50mJ),
LONG mode: selectable from 100 mJ to 500 mJ (step 50 mJ)
Repetition rate1 ÷ 10Hz, 15Hz, 20Hz
Spot1 mm
Beam delivery7-mirrors articulated arm
Power supply230V, 50-60 Hz, 8.5A
Size and weigth23 X 65 X 68 cm, 47Kg
Laser shutterControlled by footswitch
