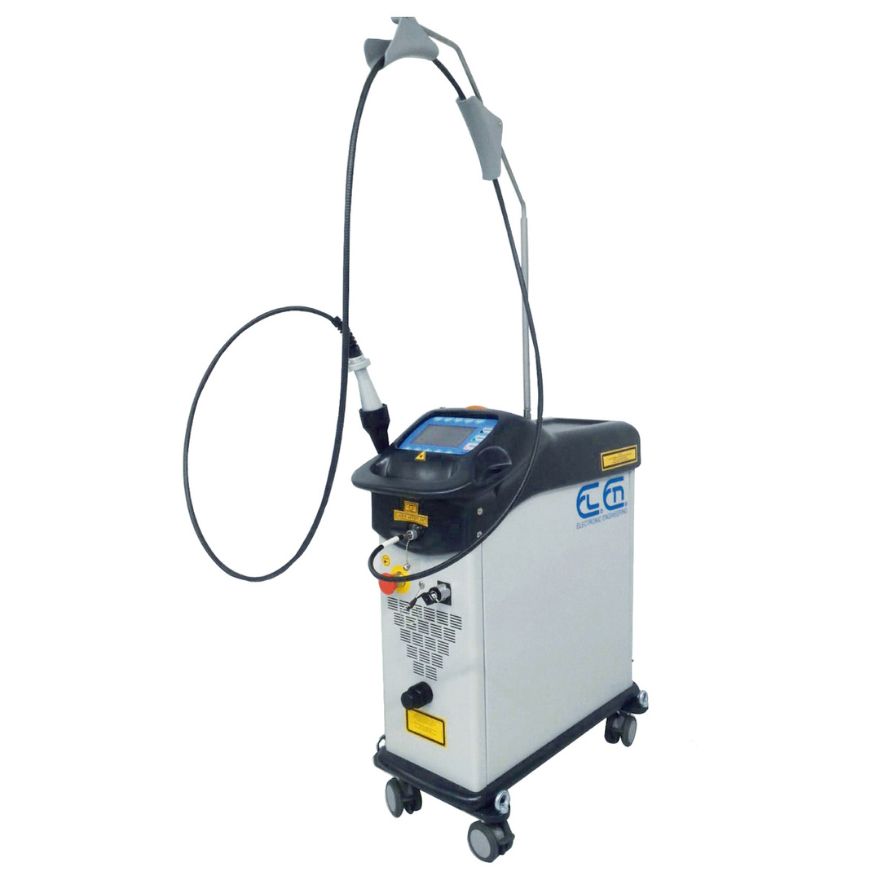

EOS 1000 LQS

The Eos 1000 LQS adopts the particular Long Q-Switch pulse length (100ns), specially designed and tested for the cleaning of the gilded bronze frieze of the Gates of Paradise, by Lorenzo Ghiberti, from the Baptistery in Florence. Since its initial application on this masterpiece its use has spread to a wide range of applications that make the EOS 1000 LQS an extremely versatile system for restorers, thanks, in part, to its small size and light weight.

The EOS 1000 LQS is suitable for highly accurate cleaning of metal and gilded surfaces, frescoes and painted surfaces, wood, valuable stone artifacts.

The laser beam is delivered through a 3 m optical fiber and a handpiece with variable focus.

MAIN FEATURES

Light, handy and versatile system

Ideal for use on accurate interventions

Efficient on different kind of materials

EOS 1000 LQS - TECHNICAL DATA

Wavelength1064 nm
Pulse duration100 ns
Max energy per pulse150 mJ
Repetition rateSelectable: single pulse, 1 ÷ 10Hz, 15Hz, 20Hz
Spot1.5 - 6 mm
Beam delivery1200 μm optic fiber, 3m long

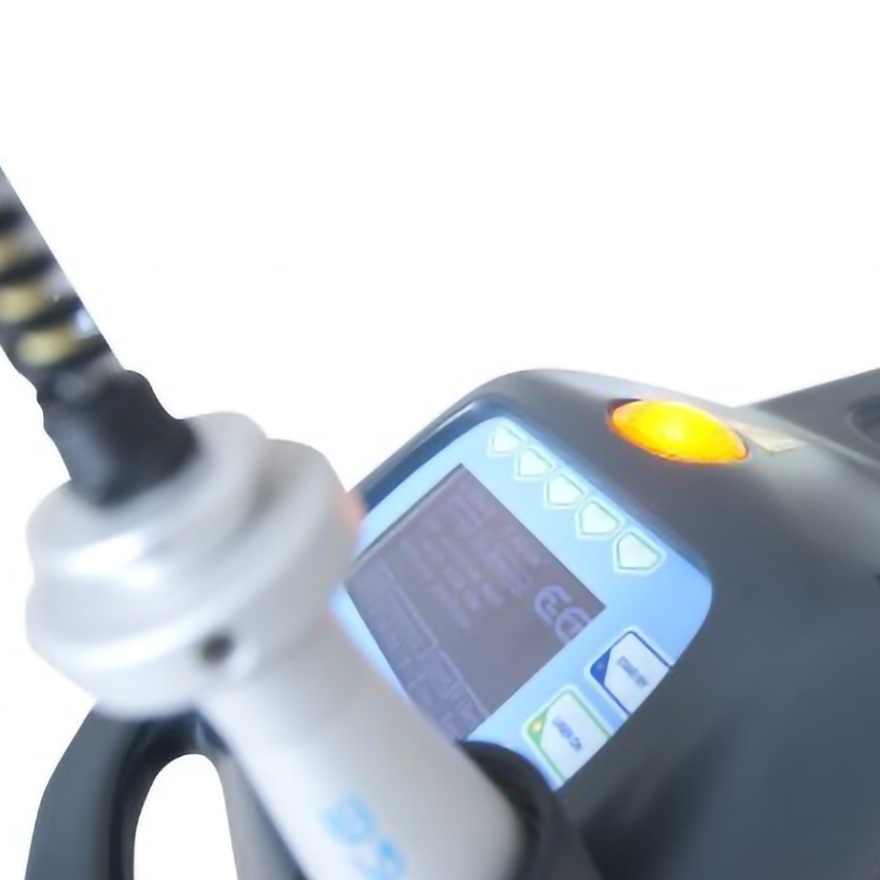

HandpieceVariable focus
Beam profilehomogeneous
Aiming beamLaser diode 3 mW (635 nm)
Power supply230V – 50/60 Hz – 8.5A
Dimensions23x65x68 cm
Weight40 Kg
Laser shutterControlled by footswitch
Cooling circuitWater/air
